MargisBench is a cross-architectural evaluation suite designed to standardize and profile Computer Vision Classification performance across heterogeneous hardware platforms.
It provides a modular framework for running Design of Experiments (DoE) to benchmark AI models on various accelerators, managing everything from model conversion to statistical analysis of inference metrics.
- Cross-Architecture Support: Run inference on multiple platforms including:
- Generic Platform: CPU Inference support and possibility to extend it to enable GPU Inference (via ONNX Runtime).
- Google Coral Dev Board: Google Edge TPU Inference support.
- Fusion 844 AI - TTTech: Hailo8 Accelerator Inference Support.
- Optimization Pipeline: Integrated support for model optimization techniques like Pruning, Quantization and Distillation (it needs distilled pre-trained weights).
- Model and Optimization Extensibility: Support for adding new native/custom Models (available in PyTorch Library) and Optimizations (though implementation from PyTorch Library).
- Design of Experiments (DoE): Built-in
BenchmarkingFactoryto orchestrate rigorous statistical experiments, managing repetitions, configurations, and data collection. - Modular Design: distinctly separated modules for Configuration, Runners, Data Management, and Platform Abstraction.
- Simple Setup: Scripts to initialize project environments and manage platform-specific dependencies.
Note
The Framework is intended to work on Linux and it's tested on Debian based distributions (Raspberry PI OS 13 and Linux Mint 22.2) and on RHEL distribution (Fedora 43). The correct behavior on other distributions (other than those mentioned) isn't tested and not guaranteed.
build-essential tk-dev python3-dev python3-pip python3-venv pkg-config gfortran cmake ninja-build cargo
libssl-dev libffi-dev libjpeg-dev zlib1g-dev libpng-dev libtiff-dev libfreetype6-dev liblcms2-dev
libwebp-dev libopenblas-dev liblapack-dev libsodium-dev protobuf-compiler libprotobuf-dev
libgl1-mesa-glx libncurses5-dev libncursesw5-dev libreadline6-dev libdb5.3-dev libgdbm-dev
libsqlite3-dev libbz2-dev libexpat1-dev liblzma-dev libdrm-dev git-lfs
It may be needed enable CRB and EPEL repositories to install some of these dependencies.
python3-devel python3-pip pkgconfig gcc-gfortran cmake ninja-build cargo
openssl-devel libffi-devel libsodium-devel ncurses-devel readline-devel
bzip2-devel sqlite-devel libdb-devel gdbm-devel xz-devel expat-devel zlib-devel
libjpeg-turbo-devel libpng-devel libtiff-devel freetype-devel lcms2-devel libwebp-devel
openblas-devel lapack-devel protobuf-devel protobuf-compiler
mesa-libGL-devel libdrm-devel tk-devel git-lfsNote
To execute the framework on Fusion 844 AI target, the latest version of Docker is required to perform the Model Conversion pipeline.
- x86_64 or aarch64 architecture and 64-bit Operating System,
- At least 8Gb of RAM,
- At least 15Gb of Disk.
- Python3.10.19
- Git LFS
Python Installation
The framework is fully implemented and tested on Python 3.10.19. It's reccommended to install it via the system package manager or build it from source.
MargisBench includes an initialization script to set up the project files, setup the virtual environment and install necessary dependencies.
-
Clone the repository:
git clone https://github.com/MargisBench/MargisBench.git cd MargisBench git lfs pull -
Run the initialization script: This sets up the
./PackageDownloadModule/requirementsFileDirectory/.installed.jsonstatus, cleans old environments, and creates a freshvenvwith all requirements.chmod +x initialize_project.sh ./initialize_project.sh
-
Activate the Virtual Environment:
source venv/bin/activate
Warning
On RHEL distributions provided with SELinux, some error can occur due to executable stack flag bit set on some dependency package. To remove this flag temporarily the following command can be executed: execstack -c <path-to-package-in-venv>. To know more about this visit Execstack Flag in RHEL SELinux-enforced distributions section in the wiki.
The framework is organized into specific packages to handle different aspects of the benchmarking pipeline:
BenchmarkingFactory/: The core of the framework. Contains theDoE(Design of Experiments) manager, theAIModeldefinition,DataWrapperfor dataset handling, andOptimizationlogic.ConfigurationModule/: Handles parsing and validating configuration files (JSON schemas) for devices and experiments. It also contains theConfigFiles/folder which contains all the configuration files.Converters/: Contains logic to convert standard models into hardware-specific formats (e.g., for Coral to .tflie or Fusion/Hailo devices to .hef).ModelData/: Directory structure for storing Model Weights, Datasets, and generated ONNX models.PackageDownloadModule/: Manages the download and installation of platform-specific dependencies.PlatformContext/: Abstraction layer for the underlying platform context.PlatformInitializers/: Scripts and utilities to prepare and initialize specific hardware platforms (e.g., pushing files to edge devices, enabling performance mode etc.).Runner/: Contains theRunnerModuleimplementations that execute the actual inferences on the target hardware.Utils/: General utility functions, logging configurations, and statistical helper tools.Results/: Folder were the final results will be saved.
More about this in the dedicated Wiki. Check it out!
Note
The framework is based on Casting Products Dataset that is already fournished inside the project.
The native models are pre-trained on this dataset.
Other dataset can be used as long as they are compliant to this folder structure and the relative .pth for the specific models are provided in ModelData/Weights folder.
The framework typically operates by defining a configuration dictionary (or JSON file) that specifies the models, optimizations, and datasets to be tested. This configuration can be loaded from ConfigurationModule/ConfigFiles/config.json or created in an interactive way.
The DoE class in BenchmarkingFactory/doe.py acts as the orchestrator.
Note
To know more about configurations composition, feature and limits please check About Configuration Files wiki page. If you are willing to compile configurations file manually, read the mentioned section carefully.
This is a configuration example that can be provided to the tool. This configuration can be loaded from a json file or created in an interactive way.
{
"models": [
{
"model_name": "resnet18",
"native": true
},
{
"module": "torchvision.models",
"model_name": "mobilenet_v2",
"native": false,
"weights_path": "ModelData/Weights/mobilenet_v2.pth",
"device": "cpu",
"qat_mode": false,
"class_name": "mobilenet_v2",
"weights_class": "MobileNet_V2_Weights.DEFAULT",
"image_size": 224,
"num_classes": 2,
"task": "classification",
"description": "Mobilenet V2 from torchvision"
}
],
"optimizations": {
"Quantization": {
"method": "QInt8"
},
"Pruning": {
"method": "LnStructured",
"n": 1,
"amount": 0.05,
"epochs": 1
},
"Distillation": {
"method": true,
"distilled_paths": {}
}
},
"dataset": {
"data_dir": "ModelData/Dataset/casting_data",
"batch_size": 1
},
"repetitions": 30
}Thanks to this configuration, the tool will perform inferences with resnet18 (Quantized, Optimized, Distilled), and mobilenet_v2 (Quantized, Optimized, Distilled) on dataset ModelData/Dataset/casting_data with batch size 1.
Every model configuration (Model + Optimization) will be executed repetitions times (30 in this case).
After executed all the steps in MargisBench Installation section, the framework provides a command line interface callable with margis command.

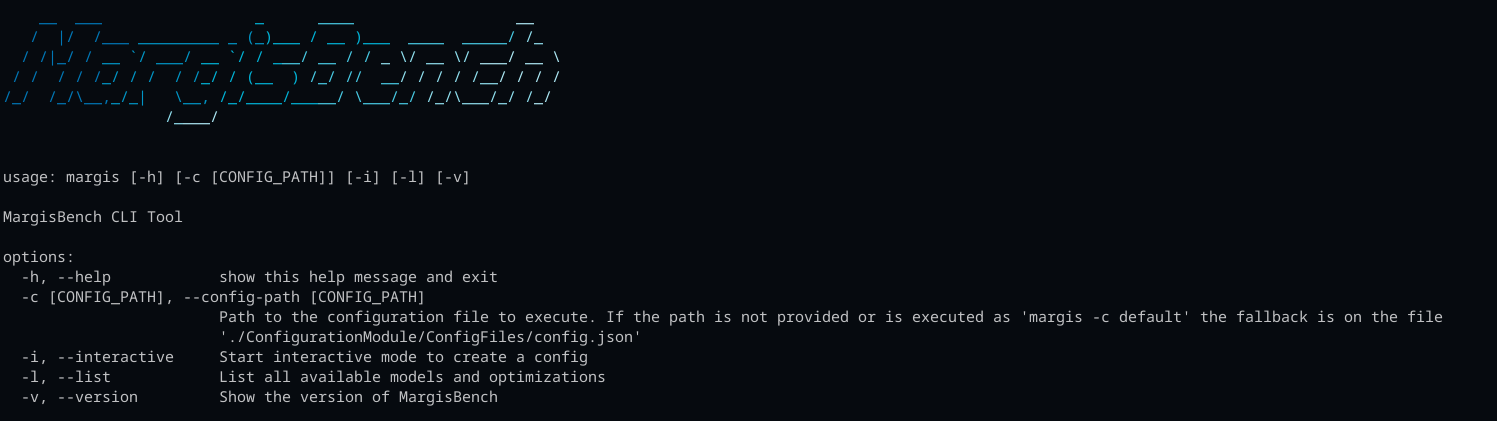

Show helper:
margisor
margis -h

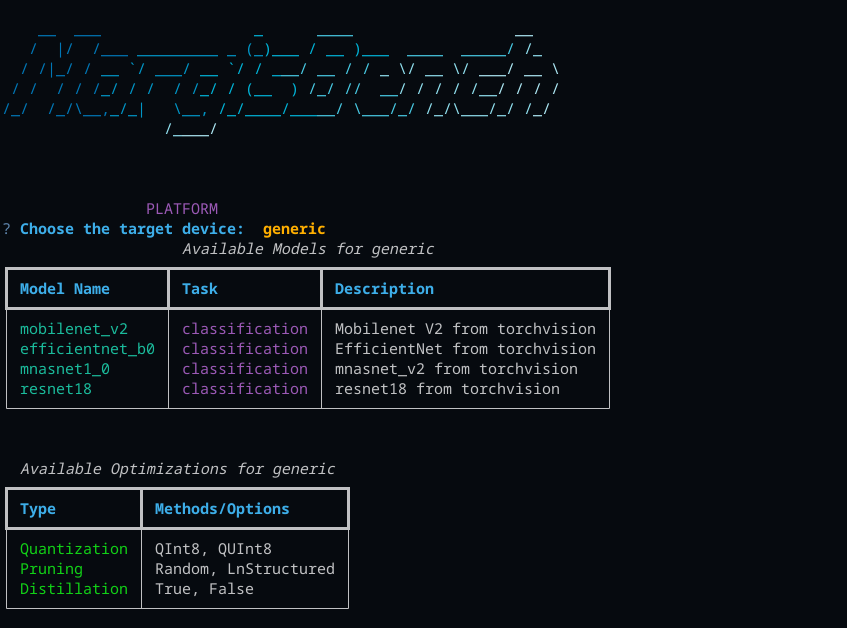

List available native models and optimization for specific platform:
margis -l
This functionality is helpful to understand the target platform which types of optimization supports. (e. g. for Coral Dev Board and Fusion 844 AI the Quantization optimization is not allowed in the configuration because all the models will be directly quantized in order to run the Inference on the accelerators).
How perform a Benchmark
Note
In every execution scenario, the user will have to choose the target platform.
margis -c or
margis -c defaultIn the default way, MargisBench will load the configuration from ConfigurationModule/ConfigFiles/config.json.
The ConfigurationModule/ConfigFiles/config.json file will be overwritten at every execution of a new configuration (e. g. with a different file provided by config-path flag or created with interactive mode), therefore it represents the last configuration provided to the framework that was correctly parsed.
The configuration file provided should be similar to that shown in Configuration Structure Example section.
Warning
If the ConfigurationModule/ConfigFiles/config.json, an error will occur. In this case it's recommended to give a .json file in input, compliant with the configuration schema, or create a new one through the interactive mode.
To provide an external configuration file
margis -c <path-to-json-config-file>The configuration should be compliant to the JSON Schema which is specific to the chosen platform.
Note
The interactive mode provides a simple way to generate a configuration with native models that are already present in the project (trained on Casting Products Dataset). In order to use a configuration with custom models, the file must be compiled manually and provided through Configuration File Mode.

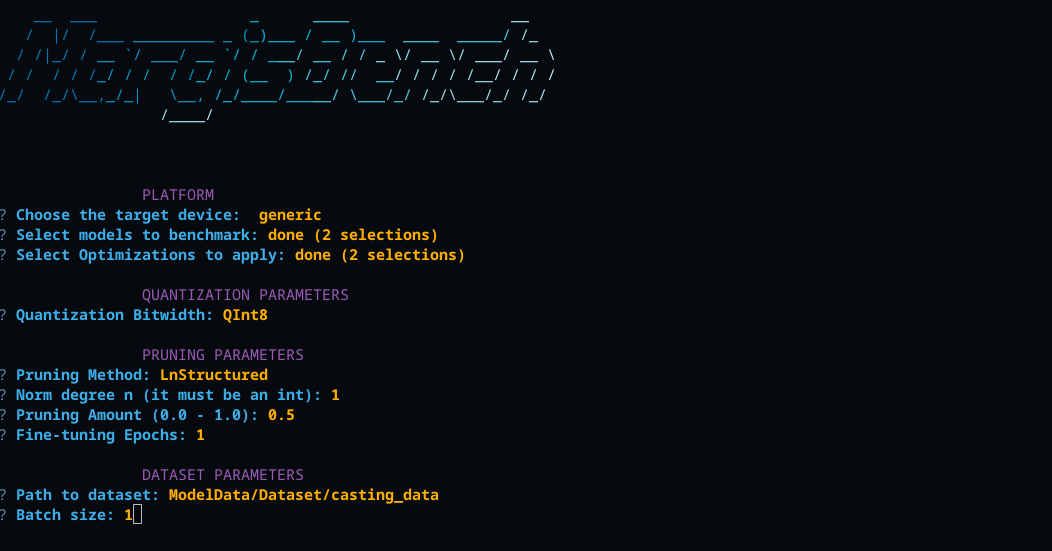

margis -i This command will show a custom initialization wizard, that helps the user to choose models, available optimizations and their parameters (for that specific chosen platform) and the dataset path.
After the execution, the framework will perform an ANOVA analysis on the collected data during the inferences and some visual plot are generated under Results/config_id/ where config_id is the configuration ID generated from the provided configuration (plus two arguments added during the execution: platform and arch) .
The structure of Results/config_id should be like the following:
Results/f71d264fc991_generic/
├── DoEResults
│ ├── anova_results_summary.csv
│ └── doe_results_raw.csv
└── Plots
├── Accuracy
│ └── accuracy_per_optimization.png
├── BoxPlots
│ ├── all_models_boxplot.png
│ ├── efficientnet_b0_boxplot.png
│ ├── mnasnet1_0_boxplot.png
│ ├── mobilenet_v2_boxplot.png
│ └── resnet18_boxplot.png
├── interaction_plot.png
├── optimization_heatmap.png
├── pareto_plot.png
└── Profiling
├── profile_stack_efficientnet_b0.png
├── profile_stack_mnasnet1_0.png
├── profile_stack_mobilenet_v2.png
└── profile_stack_resnet18.pngConsult the Plot Examples Section for some plot examples.

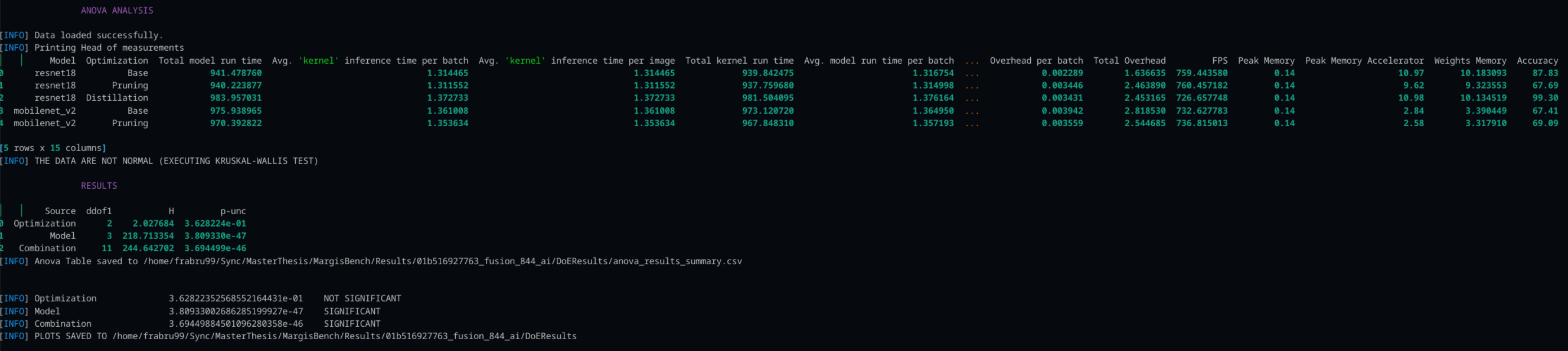

How perform ANOVA Analysis with MargisBenchCLI
In order to execute only the ANOVA analysis and show the results on terminal (from existing data) the flag -a can be used.
margis -aor
margis -a defaultor
margis -a <path-to-json-config-file>The configuration file will be loaded (ConfigurationModule/ConfigFiles/config.json in the default case) and the config_id is calculated. If the file Results/config_id/DoEResultsdoe_results_raw.csv exists the analysis will be performed and visual plots/anova_results_summary.csv recreated.
This section mentions the main open source projects used to gave life to MargisBench. Thank you guys!
This project is licensed under the MIT License - see the LICENSE file for details.
